RackMount PowerSupply(12V 20A 16CH)

Rs.10,657.00
Product Code: RackMount PowerSupply(12V 20A 16CH)FPS 1220-1600A-1U
Availability: In Stock

Technical Parameter:

Model No.: FPS 1220-1600A-1U

· Low noise & ripple

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· Easy to facilitate the installation
· 100% full load burn-it test

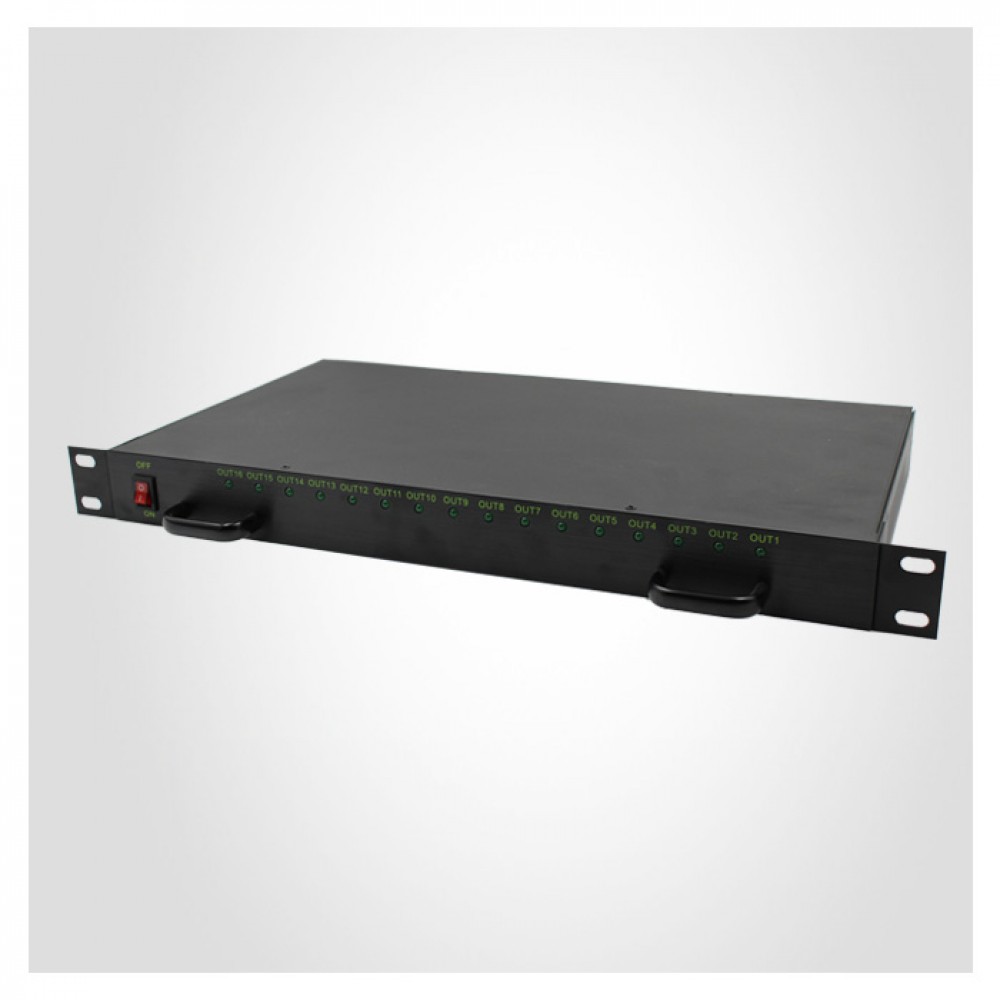

FPS 1220-1600A-1U is a rack mount power supply, its main output is 12V / 20A. It could be used for CCTV surveillance / access control / fire alarm and other security systems.

INPUT

Voltage Range

190 - 260VAC

Frequency Range

50 - 60Hz

Efficiency (Typ.)

>85%

OUTPUT

Voltage

12V (12 – 14V adjustable inside)

Rated Current

20A

Rated Power (Max.)

280W (under 14V output voltage)

Ripple & Noise

<100mVp-p

Line Regulation

±2%

Load Regulation

±2%

Output Channel

16 channels

PROTECTION

Input Fuse

10A / 250VAC

Output Fuse

2.5A per channel, recovers automatically after fault condition is removed.

Overload

24A ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

16V ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

Temperature

Working: -20 - 50

Storage: -30 - 80

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

SAFETY & EMC

EMC Standards

Complies with EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3

LVD Standards

Complies with EN 60950-1

DIMENSION & PACKING

Product Dimension

438 x 250 x 44mm

Packing

56.5 x 52.5 x 35.5cm / CTN, 23.5kg / CTN, 5pcs / CTN
