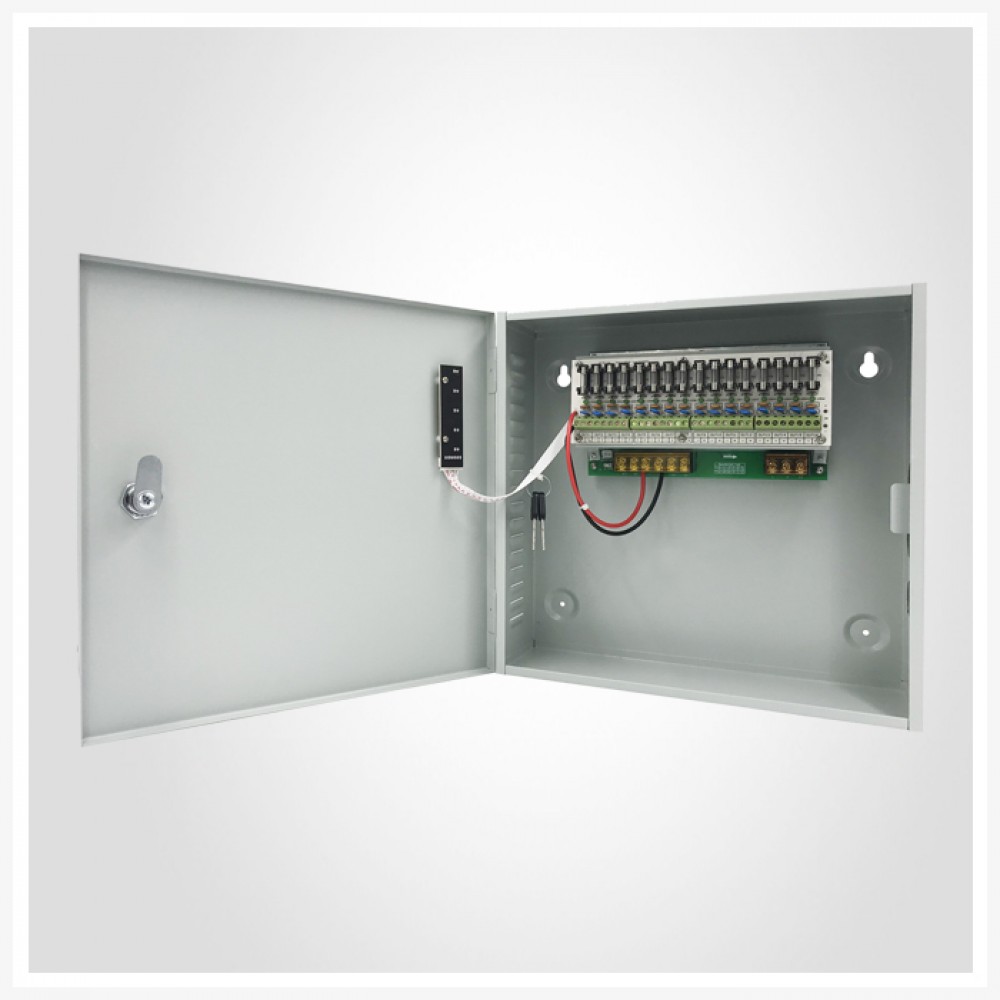

UPS Power Supply(12V 10A 16CH)

Rs.6,725.00
Product Code: UPS Power Supply(12V 10A 16CH) FPS 1210N-16CBD
Availability: In Stock

Technical Parameter:

Model No.: FPS 1210N-16CBD

· Uninterruptible PSU

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· No delay battery boot up
· 100% full load burn-it test

· Work with different optional modules

FPS 1210N-16CBD is an UPS power supply, its main output is 13.6V / 10A with 16 outputs, while it also provides maximum 2A charge current. It could be used for CCTV surveillance / access control / fire alarm and other security systems.



INPUT

Voltage Range

190 - 240VAC

Frequency Range

50 - 60Hz

OUTPUT

Voltage (AC Mode)

13.6V ±2%

Voltage (Battery Mode)

Same as battery voltage

Rated Current

10A

Rated Power (Max.)

163.2W (with 2A charge current)

Efficiency (Typ.)

>85%

Ripple & Noise

<120mVp-p

Output Channel

16   channels

CHARGING

Voltage

13.6V ±2%

Current

2A (max.), Constant voltage mode, charge current decreases when battery voltage increases.

PROTECTION

Input

3A / 250VAC fuse

Overload

12A ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

16V ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Battery Low Voltage

10V ±2%, PSU shuts down until AC power recovers.

Battery Reverse Connect

Battery not works, no effect on main output.

ENVIRONMENT

Temperature

Working: -20 - 50

Storage: -30 - 80

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

Red

On

AC power is on

Green

On

DC output is on

Yellow

On: Battery is discharging / fully charged / no battery

Flickering: Battery is charging

Red

On

AC failure alarm

Red

On

Battery low voltage (<11V) alarm

SAFETY & EMC

EMC Standards

EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD Standards

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013

METAL BOX & PACKING

Default Metal Box

285 x 285 x 90mm, fits for 1 pc 12V 10Ah battery.

Optional Metal Box

395 x 285 x 90mm, fits for 1 pc 12V 20Ah battery.

395 x 285 x 165mm, fits for 1 pc 12V 55Ah battery.

Packing

51 x 31 x 32.5cm / CTN, 17kg / CTN, 5pcs / CTN (default metal box)
