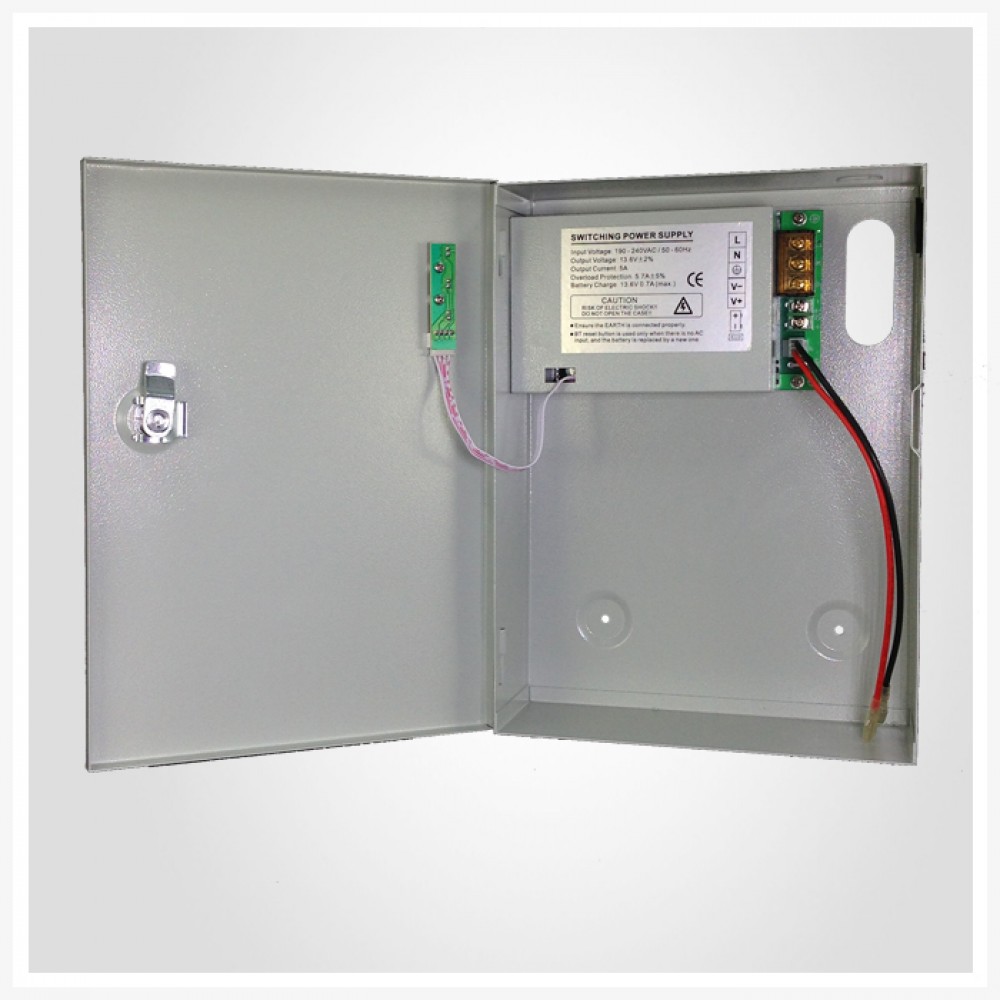

UPS PowerSupply (24V 2.5A)
Technical Parameter:
Model No.: FPS 24025-01B
· Uninterruptible
PSU
· Metal
Case With Key-lock
· 85%
High efficiency
· 2
Years Warranty
· Full
Protection
· No delay battery boot up
· 100% full load burn-it test
· Work
with different optional modules
|
INPUT |
Voltage Range |
190 - 240VAC |
|
|
Frequency Range |
50 - 60Hz |
||
|
OUTPUT |
Voltage (AC Mode) |
27.2V ±2% |
|
|
Voltage (Battery Mode) |
Same as battery voltage |
||
|
Rated Current |
2.5A |
||
|
Rated Power (Max.) |
77.5W (with 0.35A charge current) |
||
|
Efficiency (Typ.) |
>85% |
||
|
Ripple & Noise |
<240mVp-p |
||
|
Output Channel |
1 channel |
||
|
CHARGING |
Voltage |
27.2V ±2% |
|
|
Current |
0.35A, Constant current |
||
|
PROTECTION |
Input |
3A / 250VAC fuse |
|
|
Overload |
3A ±5%, Hiccup mode, recovers automatically after fault condition is removed. |
||
|
Over Voltage |
30V ±5%, Hiccup mode, recovers automatically after fault condition is removed. |
||
|
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
||
|
Battery Low Voltage |
21V ±2%, PSU shuts down until AC power recovers. |
||
|
Battery Reverse Connect |
Battery not works, no effect on main output. |
||
|
ENVIRONMENT |
Temperature |
Working: -20 - 50℃ |
Storage: -30 - 80℃ |
|
Humidity |
Working: 20 - 80%RH |
Storage: 10 - 90%RH |
|
|
LED INDICATOR |
Red |
On |
AC power is on |
|
Green |
On |
DC output is on |
|
|
Yellow |
Off: Battery is fully charged or no battery |
||
|
Flickering: Battery is charging |
|||
|
SAFETY & EMC |
EMC Standards |
EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013 |
|
|
LVD Standards |
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013 |
||
|
METAL BOX & PACKING |
Metal Box |
265 x 195 x 75mm, fits for 2 pcs 12V 5Ah batteries. |
|
|
Packing |
42.5 x 39.5 x 30cm / CTN, 16kg / CTN, 10pcs / CTN |
||
